注塑拉伸吹塑成型機

簡介

射出拉伸吹塑機 是專門用於製造高透明度、輕量且尺寸精確的中空容器的塑料加工系統，最常見的是 PET 瓶子和罐子。該製程在單步機台中將射出成型、雙軸拉伸吹塑和頂出整合在單一循環中，或在兩步生產系統中採用分離的預製件加熱再吹塑序列。

這些機台在高端包裝市場中至關重要，因為在軸向和環向同時拉伸預製件會使聚合物鏈排列，從而提升強度、透明度、阻隔性能和材料效率，優於非拉伸吹塑。它們廣泛用於飲料、藥品、個人護理和食品包裝，也支援使用 PET、PP、PC、PLA、PETG 及相關 熱塑性塑料 的特殊容器（視機台平台而定）。

從工程角度來看，射出拉伸吹塑已朝向更快的旋轉分度、更精確的伺服控制、熱流道預製件系統、節能全電動驅動，以及更高的自動化檢測與下游處理方向發展。其未來受永續性需求影響，包括輕量化、回收料加工、熱定型包裝和降低單位能耗，同時仍面臨乾燥敏感樹脂、模具成本和製程窗口敏感度等挑戰。

歷史與發展

該製程源自早期的射出吹塑和拉伸吹塑概念，這些概念確立了先射出成型預製件再於吹塑模具中膨脹的優勢。關鍵技術進展是引入先拉伸再充氣，改善分子取向，使容器更強韌、 clearer，並具備更好的氣體阻隔性能。

重大工業里程碑是單階段 ISBM 機台的普及，預製件成型、調溫、拉伸和吹塑在同一平台上完成，無需完全冷卻或離機儲存。這種架構對高價值容器、特殊形狀，以及需要嚴格控制瓶頸和衛生敏感包裝的生產環境特別重要。

另一項發展是採用四工位旋轉佈局、熱流道預製件模具和伺服驅動運動系統，提升循環一致性並降低能耗。近期機台世代強調全電動驅動、多腔能力，以及與更廣泛材料（包括 rPET 和工程聚合物）的相容性，用於利基容器。

技術概覽

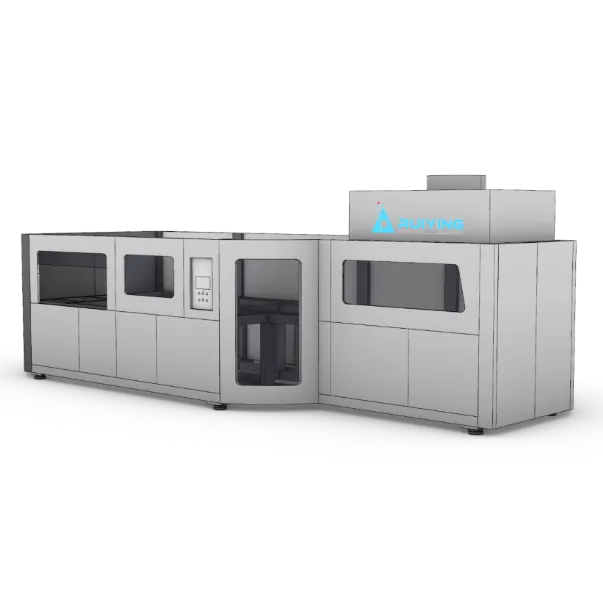

射出拉伸吹塑機 通常包含射出單元、預製件模具、調溫或再熱區段、拉伸桿、吹塑模具、夾模系統和頂出站。在單步機台中，這些功能整合於旋轉或線性移送系統；在兩步系統中，預製件另行成型、儲存，之後再加熱並吹塑。

製程順序通常為：

1. 射出預製件 至精密模具，形成瓶頸和厚壁管狀坯料。

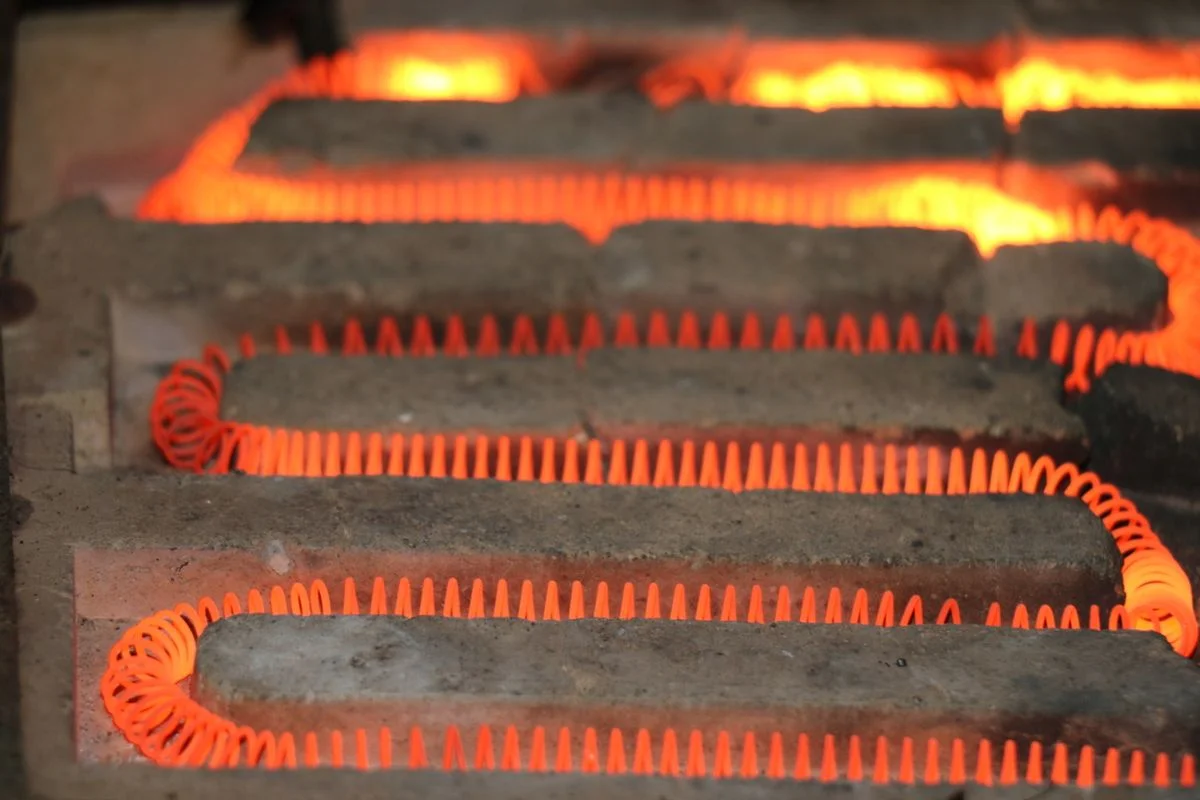

2. 熱調溫 使預製件達到可拉伸溫度窗口，同時維持尺寸穩定性。
3. 軸向拉伸 使用拉伸桿，使聚合物鏈取向並提升機械性能。
4. 雙軸吹塑 以壓縮空氣將預製件膨脹至模腔壁。
5. 冷卻與頂出 以鎖定形狀和尺寸精度。

典型操作與性能基準

• 吹塑時的空氣壓力： 拉伸吹塑系統中通常約 85 至 120 psi（約 586 至 827 kPa），依技術訓練資料所述。
• 轉子或分度架構： 常見單步機台採用 3 工位或 4 工位 旋轉佈局，四工位系統可分離射出、調溫、拉伸/吹塑和脫模作業。
• 材料溫度窗口： PET 預製件通常需經仔細乾燥與再熱後加工；某技術來源指出某些系統中 PET 或 PC 的熔體準備溫度為 260°C 至 300°C，但實際機台設定高度依樹脂與設計而定。
• 容器尺寸： 商業單步系統提供從極小格式如 10 mL 至約 2.5 L，視腔數與瓶頸設計而定。
• 產能： 工業機台依腔數與容器尺寸差異甚大，從特殊低量機台到高產出多腔系統；供應商文獻通常強調多腔生產而非單一通用產能數字。

材料行為與產品品質

關鍵機制為雙軸取向。拉伸桿的軸向拉伸與空氣壓力的徑向膨脹使聚合物鏈排列，提升剛性、透明度，以及抗蠕變與抗壓損性能。這也是 ISBM 特別與碳酸飲料瓶相關的原因，因為爆裂強度、氣體阻隔性能和光學品質至關重要。

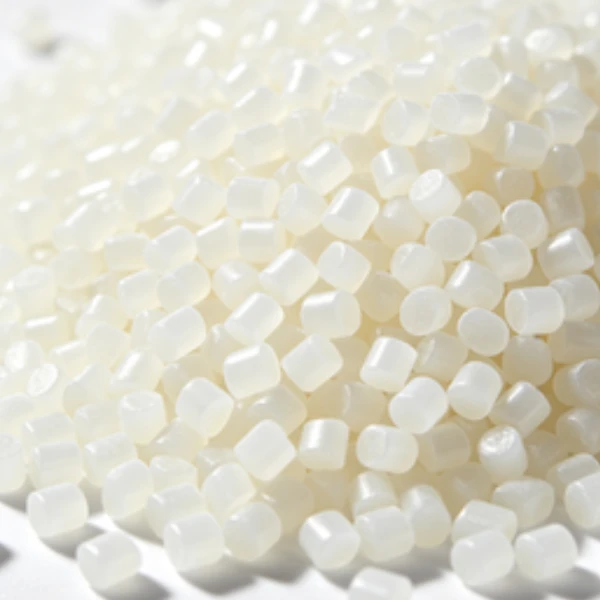

PET 仍是主要樹脂，因其兼具良好加工性、食品接觸適用性與有利取向反應，但部分機台也可加工 PP、PC、PLA、PETG、TRITAN 及 rPET，視產品與機台設計而定。高吸濕性材料（尤其是 PET）需仔細乾燥，以避免霧化、水解及特性黏度下降。

類型與變化
